Original price was: $2.54.$1.40Current price is: $1.40.

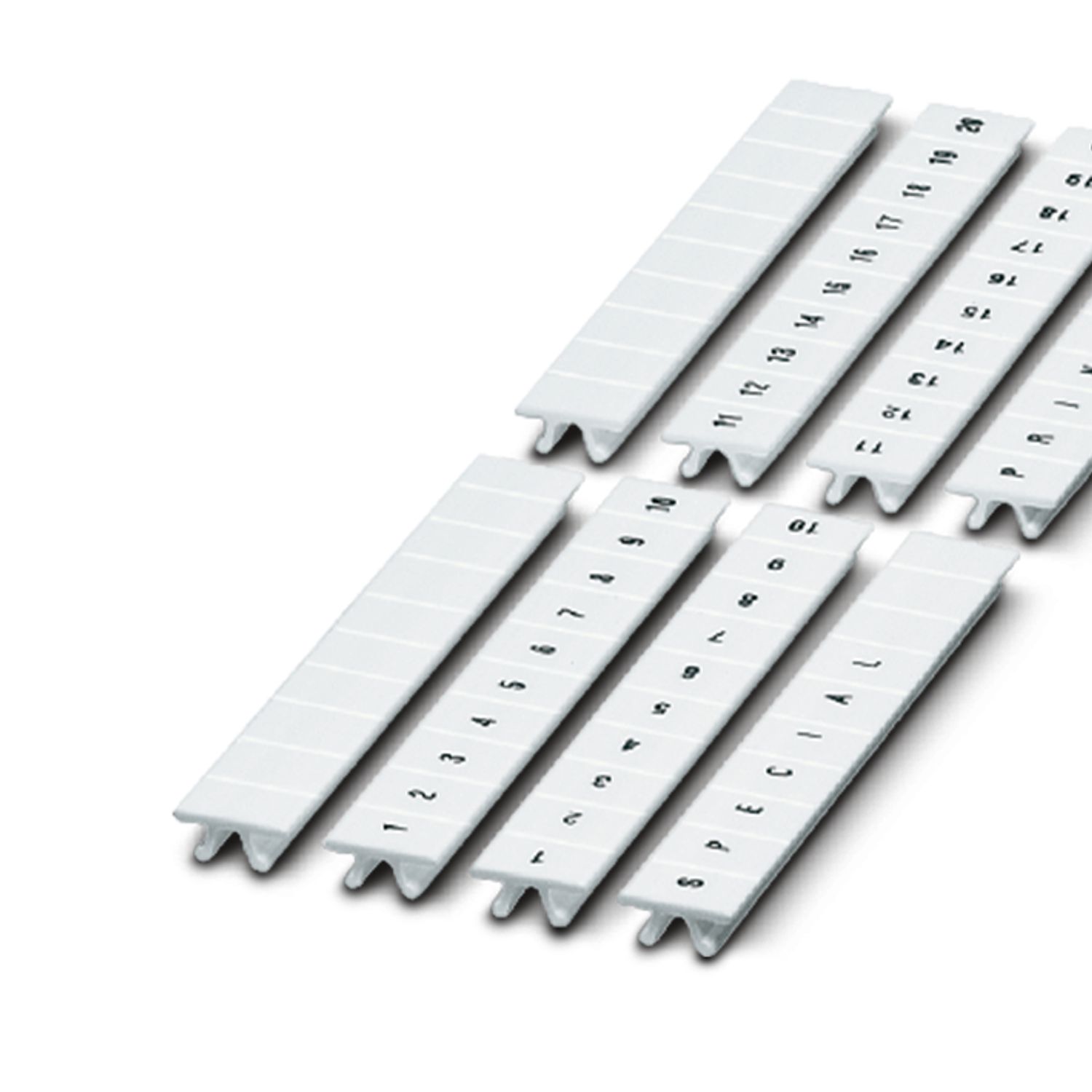

Zack marker strip, Strip, white (RAL 9010), labeled: 1 … 19, mounting type: latching, for terminal block width: 5.2 mm, text field height: 10.5 mm, text field width: 5.15 mm
| Minimum order quantity | 10 Piece |
| Packing unit | 10 Piece |
| Break packing | not allowed |
Available on backorder
Zack marker strip, Strip, white (RAL 9010), labeled: 1 … 19, mounting type: latching, for terminal block width: 5.2 mm, text field height: 10.5 mm, text field width: 5.15 mm
| Product type | Terminal marker |
|---|---|
| Pitch | 5.2 mm |
| Marking | |
| Printing | 1 … 19 |
| Slot type | high |
| Width | 5.15 mm |
|---|---|
| Height | 10.5 mm |
| Depth | 4.2 mm |
| Pitch | 5.2 mm |
| Text field | |
| Text field width | 5.15 mm |
| Text field height | 10.5 mm |
| Color | white (RAL 9010) |
|---|---|
| Material | PA |
| Flammability rating according to UL 94 | V2 |
| Base element material | PA |
| Components | free from silicone and halogen |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C … 100 °C |
|---|---|
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % |
| Test for substances that would hinder coating with paint or varnish | |
| Testing for paint wetting impairment substances (LABS-conformity) | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Scratch resistance | |
| Specification | EN ISO 1518-1:2023 (following) |
| Requirements | ≥ 5 N |
| Result | Test passed |
| Tesafilm test | |
| Specification | DIN EN ISO 2409:2020-12 (following) |
| Result | Test passed |
| UV resistance | |
| Specification | DIN EN ISO 4892-2:2021-11 (following) |
| Result | Test passed |
| Test duration | 96 h |
| Procedure | Artificial irradiation. |
| Temperature storage | |
| Specification | IEC 60068-2-2:2007-07 |
| Result | Test passed |
| Procedure | Test Bb |
| Duration | 96 h |
| Temperature for testing | 120 °C |
| Wipe resistance of inscriptions | |
| Specification | DIN EN 61010-1 (VDE 0411-01):2020-03 |
| Specification | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
| Isopropanol (99%) [67-63-0] | Test passed |
| <i>n</i>-Hexane<br/>[CAS No. 110-54-3] | Test passed |
| Water + Petroleum ether<br/>[CAS No. 64742-82-1] | Test passed |
| Testing in a condensation changing climate in the presence of sulfur dioxide | |
| Specification | EN ISO 22479:2022-06 |
| Result | Test passed |
| Procedure | Method B |
| Cycles | 2 |
| Salt spray test | |
| Specification | DIN EN IEC 60068-2-11 (VDE 0468-2-11):2022-10 |
| Result | Test passed |
| Test duration | 96 h |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
|---|
| Mounting type | latching |
|---|
| Article Number | 0800019:0001 |
|---|---|
| GTIN | 4017918492168 |
| Product Key | BG2122 |
| Status | Temporarily out of stock |
|---|---|
| Delivery | Expected to leave our warehouse in Canada on Jun 9, 2026, if ordered now |
| Estimated Delivery | Jun 9, 2026 |
| Ready to Ship | Jun 9, 2026 |
| Minimum Order Quantity | 10 Piece |
|---|---|
| Packing Unit | 10 Piece |
| Break Packing | Not allowed |
