Description

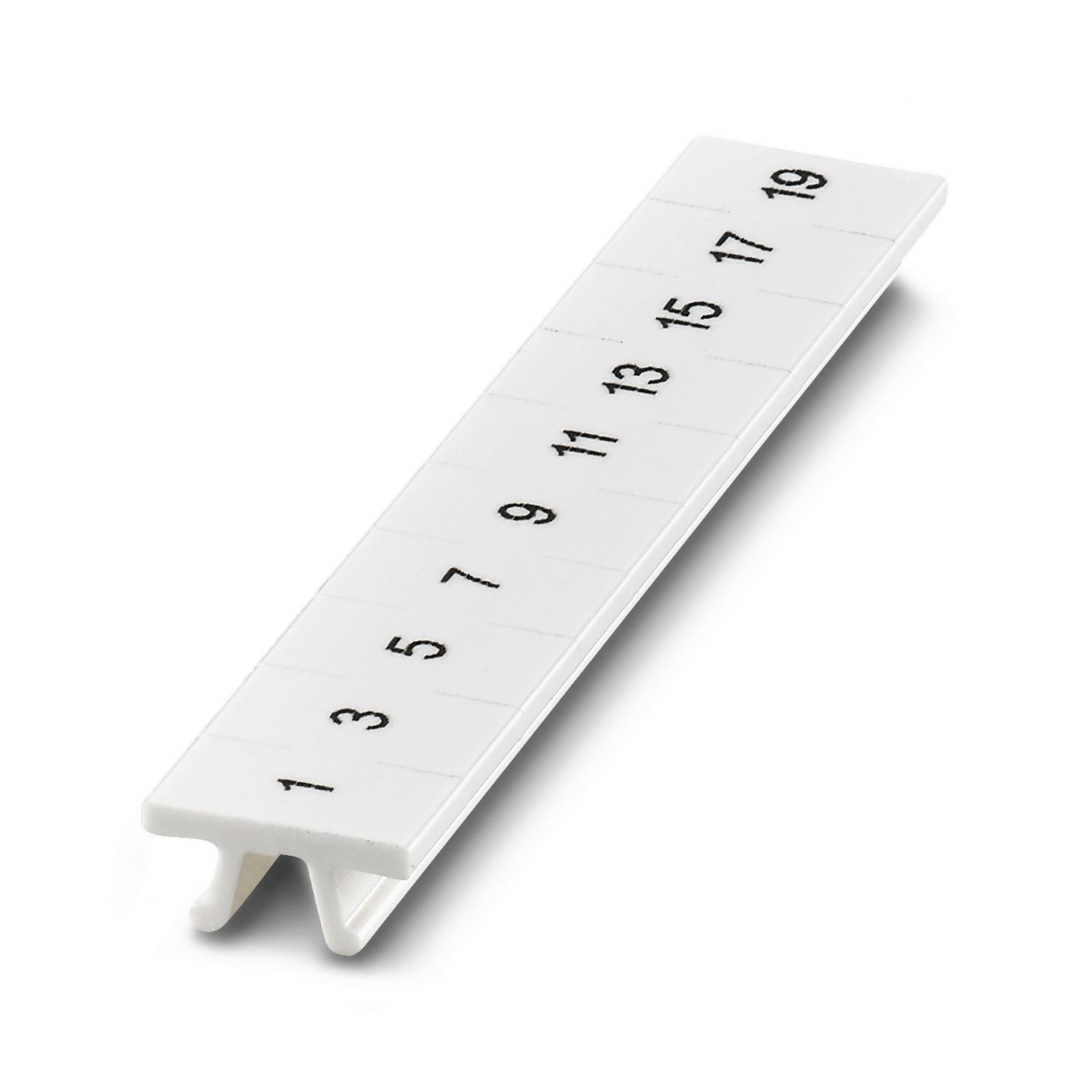

Zack marker strip
Zack marker strip, Strip, white (RAL 9010), labeled, printed horizontally: Odd numbers 1 – 19, 21 – 39, etc. up to 81 – 99, mounting type: latching, for terminal block width: 5.2 mm, Number of individual labels: 10, text field height: 10.5 mm, text field width: 5.15 mm
Notes
| Order information: |
For labeling according to customer requirement, please select 0824962 product |
Product properties
| Product type |
Terminal marker |
| Pitch |
5.2 mm |
| Marking |
| Number of individual labels |
10 |
| Number of individual labels per row |
10 |
| Number of marker strips |
10 |
| Printing direction |
printed horizontally |
| Printing |
Odd numbers 1 – 19, 21 – 39, etc. up to 81 – 99 |
| Slot type |
high |
Dimensions
| Width |
5.15 mm |
| Height |
10.5 mm |
| Depth |
4.2 mm |
| Pitch |
5.2 mm |
| Text field |
| Text field width |
5.15 mm |
| Text field height |
10.5 mm |
Material specifications
| Color |
white (RAL 9010) |
| Material |
PA |
| Flammability rating according to UL 94 |
V2 |
| Base element material |
PA |
| Components |
free from silicone and halogen |
Environmental and real-life conditions
| Ambient conditions |
| Ambient temperature (operation) |
-40 °C … 100 °C |
| Recommended ambient temperature (storage/transport) |
23 °C |
| Recommended humidity (storage/transport) |
50 % |
| Test for substances that would hinder coating with paint or varnish |
| Testing for paint wetting impairment substances (LABS-conformity) |
VW PV 3.10.7:2005-02 |
| Result |
Test passed |
| Scratch resistance |
| Specification |
EN ISO 1518-1:2023 (following) |
| Requirements |
≥ 5 N |
| Result |
Test passed |
| Tesafilm test |
| Specification |
DIN EN ISO 2409:2020-12 (following) |
| Result |
Test passed |
| UV resistance |
| Specification |
DIN EN ISO 4892-2:2021-11 (following) |
| Result |
Test passed |
| Test duration |
96 h |
| Procedure |
Artificial irradiation. |
| Temperature storage |
| Specification |
IEC 60068-2-2:2007-07 |
| Result |
Test passed |
| Procedure |
Test Bb |
| Duration |
96 h |
| Temperature for testing |
120 °C |
| Wipe resistance of inscriptions |
| Specification |
DIN EN 61010-1 (VDE 0411-01):2020-03 |
| Specification |
DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
| Isopropanol (99%) [67-63-0] |
Test passed |
| <i>n</i>-Hexane<br/>[CAS No. 110-54-3] |
Test passed |
| Water + Petroleum ether<br/>[CAS No. 64742-82-1] |
Test passed |
| Testing in a condensation changing climate in the presence of sulfur dioxide |
| Specification |
EN ISO 22479:2022-06 |
| Result |
Test passed |
| Procedure |
Method B |
| Cycles |
2 |
| Salt spray test |
| Specification |
DIN EN IEC 60068-2-11 (VDE 0468-2-11):2022-10 |
| Result |
Test passed |
| Test duration |
96 h |
Standards and regulations
| Wipe resistance |
DIN EN 61010-1 (VDE 0411-1) |
Mounting
