Original price was: $293.70.$161.54Current price is: $161.54.

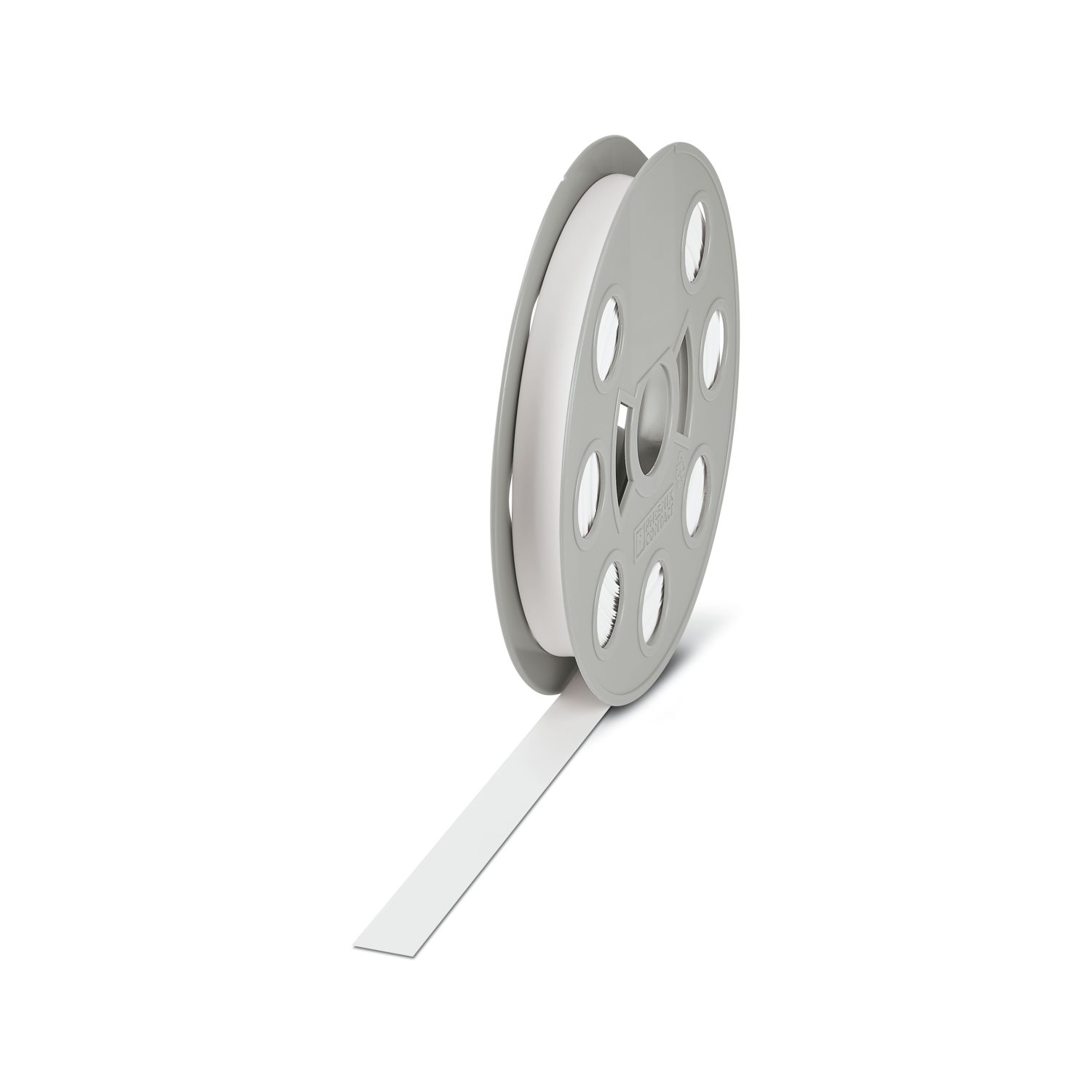

Shrink sleeve, Roll, white (RAL 9010), unmarked, can be labeled with: THERMOMARK E.300 (D)/600 (D), THERMOMARK ROLLMASTER 300/600, THERMOMARK ROLL X1, THERMOMARK ROLL, THERMOMARK ROLL 2.0, THERMOMARK W, THERMOMARK X1.2, cable diameter range: 4.2 … 12.7 mm, unperforated, mounting type: slide-on, Number of individual labels: 1, roll length: 20 m, text field height: 20 mm, text field width: 20000 mm
| Minimum order quantity | 1 Piece |
| Packing unit | 1 Piece |
| Break packing | not allowed |
Available on backorder
Shrink sleeve, Roll, white (RAL 9010), unmarked, can be labeled with: THERMOMARK E.300 (D)/600 (D), THERMOMARK ROLLMASTER 300/600, THERMOMARK ROLL X1, THERMOMARK ROLL, THERMOMARK ROLL 2.0, THERMOMARK W, THERMOMARK X1.2, cable diameter range: 4.2 … 12.7 mm, unperforated, mounting type: slide-on, Number of individual labels: 1, roll length: 20 m, text field height: 20 mm, text field width: 20000 mm
| Note on application | For the THERMOMARK ROLL and THERMOMARK ROLL 2.0 roll printers, this material can only be processed with an external media hub. |
|---|---|
| Material information | The specified minimum wire diameter of the shrink sleeve refers to its use as a marking material and does not guarantee any insulation characteristics once shrunk.<br/> <br/>Depending on the processed material batch, as well as the storage and processing conditions, the maximum insertable wire diameter may be reduced. |
| Product type | Shrink sleeve |
|---|---|
| Marking | |
| Number of individual labels | 1 |
| Number of individual labels per row | 1 |
| Identification technology | Thermal transfer |
| Length of roll | 20.00 m |
|---|---|
| Height | 21.8 mm |
| Text field | |
| Text field width | 20000 mm |
| Text field height | 20 mm |
| Color | white (RAL 9010) |
|---|---|
| Material | Polyolefine |
| Base element material | polyolefine |
| Shrink rate | 3:1 |
| Components | halogen-free |
| Shrink temperature | > 85 °C |
| External cable diameter | 4.2 mm … 12.7 mm |
|---|
| Ambient conditions | |
| Ambient temperature (operation) | -55 °C … 125 °C |
|---|---|
| Recommended ambient temperature (storage/transport) | 23 °C |
| Recommended humidity (storage/transport) | 50 % |
| Test for substances that would hinder coating with paint or varnish | |
| Testing for paint wetting impairment substances (LABS-conformity) | VDMA 24364-A1-L:2018-05 |
| Result | Test passed |
| Testing for paint wetting impairment substances (LABS-conformity) | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Scratch resistance | |
| Specification | EN ISO 1518-1:2023 (following) |
| Requirements | ≥ 5 N |
| Result | Test passed |
| Tesafilm test | |
| Specification | DIN EN ISO 2409:2020-12 (following) |
| Result | Test passed |
| UV resistance | |
| Specification | DIN EN ISO 4892-2:2021-11 (following) |
| Result | Test passed |
| Test duration | 96 h |
| Procedure | Artificial irradiation. |
| Temperature resistance | |
| Specification | ANSI/UL 969-2018:03 (following) |
| Test duration | 240 h |
| Rating 125 °C (150 °C) | Test passed |
| Wipe resistance of inscriptions | |
| Specification | DIN EN 61010-1 (VDE 0411-01):2020-03 |
| Specification | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
| Isopropanol (99%) [67-63-0] | Test passed |
| <i>n</i>-Hexane<br/>[CAS No. 110-54-3] | Test passed |
| Water + Petroleum ether<br/>[CAS No. 64742-82-1] | Test passed |
| Sodium hydroxide 0.1 mol/l<br/>[CAS No. 1310-73-2] | Test passed |
| Ethanol (99 %)<br/>[CAS No. 64-17-5] | Test passed |
| Acetone (99 %)<br/>[CAS No. 67-64-1] | Test passed |
| Immersion in chemicals, oil & fuel | |
| Specification | ISO 175:2010 (following) |
| Test duration | 168 h |
| Sodium hydroxide 0.1 mol/l<br/>[CAS No. 1310-73-2] | Test passed |
| Saltwater (saturated 350 g/l)<br/>[CAS No. – ] | Test passed |
| Ethanol (99 %)<br/>[CAS No. 64-17-5] | Test passed |
| Acetone (99 %)<br/>[CAS No. 67-64-1] | Test passed |
| Methylethylketone (MEK)<br/>[CAS No. 78-93-3] | Test passed |
| Gasoline<br/>[CAS No. 64742-49-0] | Test passed |
| Diesel<br/>[CAS No. 68476-34-6] | Test passed |
| IRM 901 | Test passed |
| IRM 902 | Test passed |
| IRM 903 | Test passed |
| Testing in a condensation changing climate in the presence of sulfur dioxide | |
| Specification | EN ISO 22479:2022-06 |
| Result | Test passed |
| Procedure | Method B |
| Cycles | 2 |
| Salt spray test | |
| Specification | DIN EN IEC 60068-2-11 (VDE 0468-2-11):2022-10 |
| Result | Test passed |
| Test duration | 96 h |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
|---|
| Mounting type | slide-on |
|---|
| Article Number | 0800294 |
|---|---|
| GTIN | 4046356625845 |
| Product Key | BG2216 |
| Status | Temporarily out of stock |
|---|---|
| Delivery | Expected to leave our warehouse in Canada on Jul 15, 2026, if ordered now |
| Estimated Delivery | Jul 15, 2026 |
| Ready to Ship | Jul 15, 2026 |
| Minimum Order Quantity | 1 Piece |
|---|---|
| Packing Unit | 1 Piece |
| Break Packing | Not allowed |
