Description

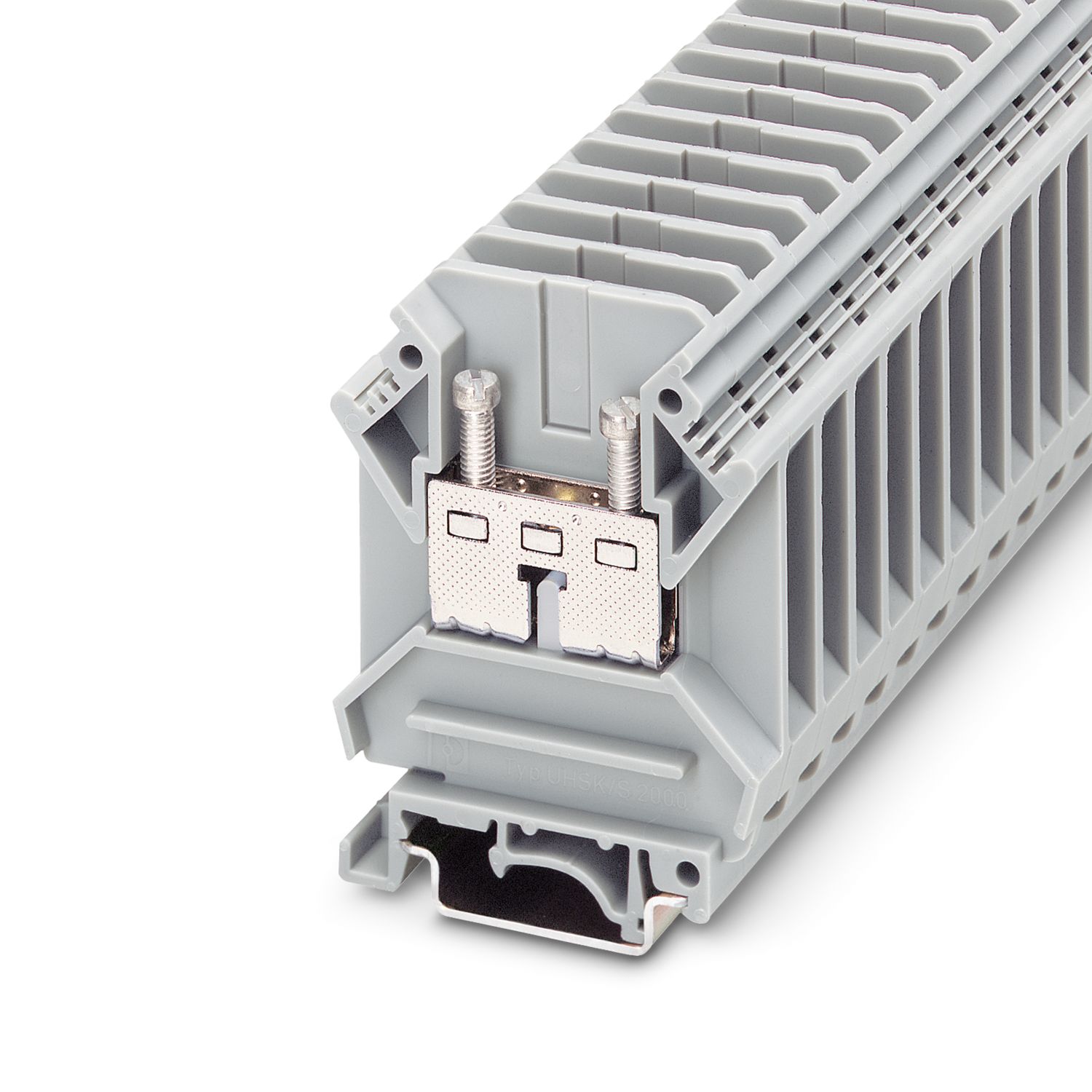

Feed-through terminal block
Feed-through terminal block, nom. voltage: 2000 V, nominal current: 41 A, number of connections: 2, connection method: Screw connection, cross section: 0.5 mm<sup>2</sup> – 10 mm<sup>2</sup>, mounting type: NS 35/7,5, NS 35/15, NS 32, color: gray
Product properties
| Product type |
Feed-through terminal block |
| Product family |
UHSK |
| Number of connections |
2 |
| Number of rows |
1 |
| Potentials |
2 |
| Insulation characteristics |
| Overvoltage category |
III |
| Degree of pollution |
3 |
Electrical properties
| Rated surge voltage |
12 kV |
| Maximum power dissipation for nominal condition |
1.31 W |
Connection data
| Number of connections per level |
2 |
| Nominal cross section |
6 mm² |
| Level 1 above 1 below 1 |
| Connection method |
Screw connection |
| Screw thread |
M4 |
| Tightening torque |
1.5 … 1.8 Nm |
| Stripping length |
15 mm |
| Internal cylindrical gage |
A5 |
| Connection in acc. with standard |
IEC 60947-7-1 |
| Conductor cross-section rigid |
0.5 mm² … 10 mm² |
| Cross section AWG |
20 … 8 (converted acc. to IEC) |
| Conductor cross-section flexible |
0.5 mm² … 6 mm² |
| Conductor cross-section, flexible [AWG] |
20 … 10 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) |
0.5 mm² … 10 mm² |
| Flexible conductor cross-section (ferrule with plastic sleeve) |
0.5 mm² … 6 mm² |
| 2 conductors with same cross section, rigid |
0.5 mm² … 6 mm² |
| 2 conductors with same cross section, flexible |
0.5 mm² … 6 mm² |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve |
0.5 mm² … 6 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve |
0.5 mm² … 6 mm² |
| Nominal current |
41 A (with 6 mm² conductor cross-section) |
| Maximum load current |
57 A (with 10 mm² conductor cross-section) |
| Nominal voltage |
2000 V (in the case of enclosed clamping space) |
Ex data
| Rated data (ATEX/IECEx) |
| Identification |
II 2 GD Ex eb IIC Gb |
| Operating temperature range |
-60 °C … 110 °C |
| Ex-certified accessories |
0704021 D-UHSK 2000 |
| Ex-certified accessories |
1205066 SZS 1,0X4,0 VDE |
| Ex-certified accessories |
1201442 E/UK |
| Bridge data |
51 A (10 mm²) |
| Ex temperature increase |
40 K (57 A / 10 mm²) |
| for bridging with bridge |
1100 V |
| Rated insulation voltage |
1000 V |
| output |
(Permanent) |
| Ex level General |
| Rated voltage |
1100 V |
| Rated current |
41 A |
| Maximum load current |
57 A |
| Contact resistance |
0.3 mΩ |
| Ex connection data General |
| Torque range |
1.5 Nm … 1.8 Nm |
| Nominal cross section |
6 mm² |
| Rated cross section AWG |
10 |
| Connection capacity rigid |
0.5 mm² … 10 mm² |
| Connection capacity AWG |
20 … 8 |
| Connection capacity flexible |
0.5 mm² … 6 mm² |
| Connection capacity AWG |
20 … 10 |
| 2 conductors with same cross section, solid |
0.5 mm² … 6 mm² |
| 2 conductors with the same cross-section AWG rigid |
20 … 10 |
| 2 conductors with same cross section, stranded |
0.5 mm² … 6 mm² |
| 2 conductors with the same cross-section AWG flexible |
20 … 10 |
Dimensions
| Width |
10.2 mm |
| End cover width |
2 mm |
| Height |
52 mm |
| Depth on NS 32 |
75.5 mm |
| Depth on NS 35/7,5 |
70.5 mm |
| Depth on NS 35/15 |
78 mm |
Material specifications
| Color |
gray (RAL 7042) |
| Flammability rating according to UL 94 |
V0 |
| Insulating material group |
I |
| Insulating material |
PA |
| Static insulating material application in cold |
-60 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) |
125 °C |
| Relative insulation material temperature index (Elec., UL 746 B) |
130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 |
HL 1 – HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 |
HL 1 – HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 |
HL 1 – HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 |
HL 1 – HL 3 |
| Calorimetric heat release NFPA 130 (ASTM E 1354) |
27,5 MJ/kg |
| Surface flammability NFPA 130 (ASTM E 162) |
passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) |
passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) |
passed |
Electrical tests
| Surge voltage test |
| Test voltage setpoint |
14.8 kV |
| Result |
Test passed |
| Temperature-rise test |
| Requirement temperature-rise test |
Increase in temperature ≤ 45 K |
| Result |
Test passed |
| Short-time withstand current 6 mm² |
0.72 kA |
| Short-time withstand current 10 mm² |
1.2 kA |
| Result |
Test passed |
| Power-frequency withstand voltage |
| Test voltage setpoint |
3.5 kV |
| Result |
Test passed |
Mechanical properties
| Mechanical data |
| Open side panel |
Yes |
Mechanical tests
| Mechanical strength |
| Result |
Test passed |
| Attachment on the carrier |
| DIN rail/fixing support |
NS 32/NS 35 |
| Test force setpoint |
5 N |
| Result |
Test passed |
| Test for conductor damage and slackening |
| Rotation speed |
10 rpm |
| Revolutions |
135 |
| Conductor cross-section/weight |
0.5 mm² / 0.3 kg |
| Conductor cross-section/weight |
6 mm² / 1.4 kg |
| Conductor cross-section/weight |
10 mm² / 2 kg |
| Result |
Test passed |
Environmental and real-life conditions
| Needle-flame test |
| Time of exposure |
30 s |
| Result |
Test passed |
| Ambient conditions |
| Ambient temperature (operation) |
-60 °C … 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) |
-25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) |
-5 °C … 70 °C |
| Ambient temperature (actuation) |
-5 °C … 70 °C |
| Permissible humidity (operation) |
20 % … 90 % |
| Permissible humidity (storage/transport) |
30 % … 70 % |
Standards and regulations
| Connection in acc. with standard |
IEC 60947-7-1 |
Mounting
| Mounting type |
NS 35/7,5 |
| Mounting type |
NS 35/15 |
| Mounting type |
NS 32 |
