Description

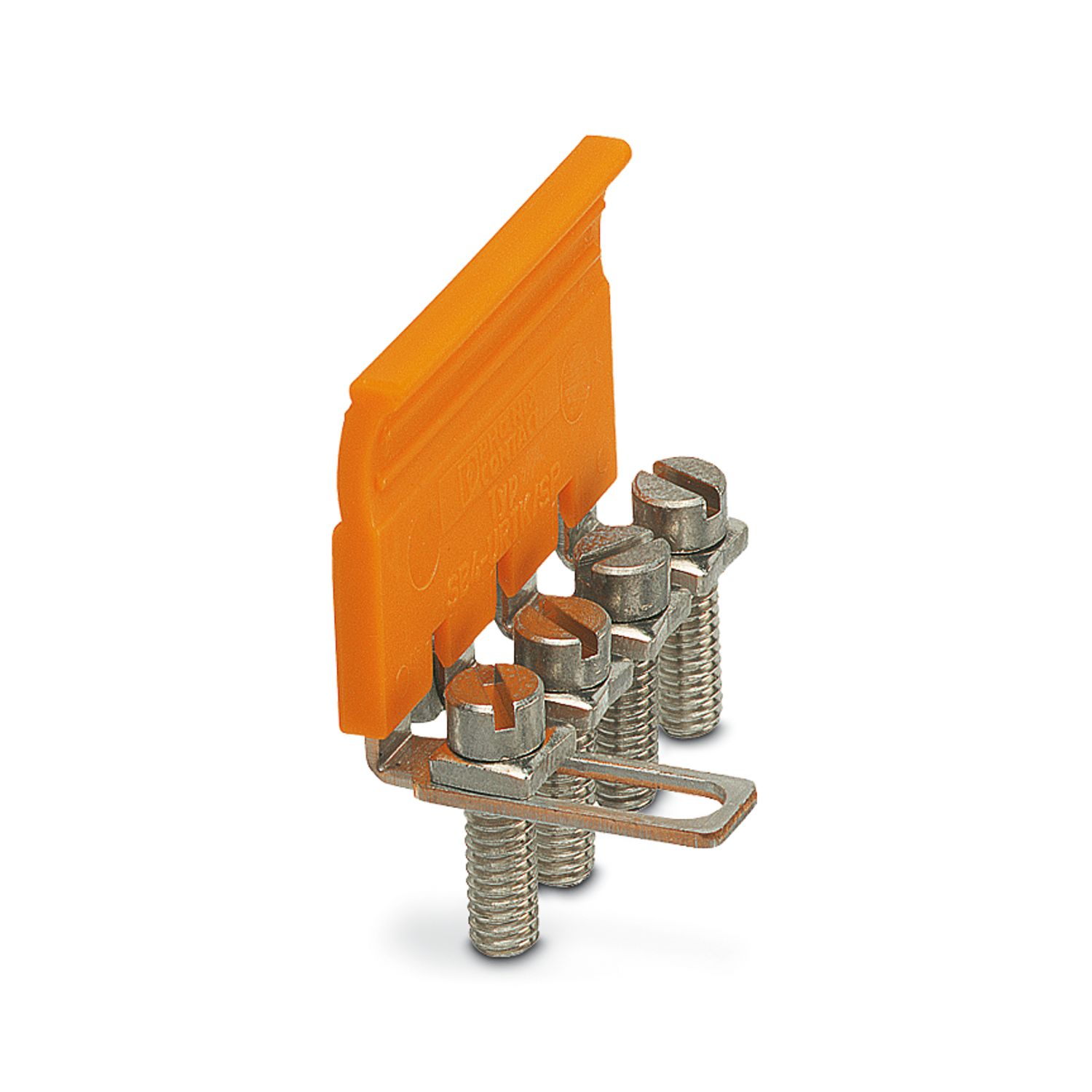

Bridge bar
Bridge bar, pitch: 8.2 mm, number of positions: 4, color: silver-colored
Product properties
| Product type |
Bridge bar |
| Number of positions |
4 |
| Pitch |
8.2 mm |
| Potentials |
1 |
Connection data
| Tightening torque |
1.2 … 1.5 Nm |
Dimensions
Material specifications
| Color |
silver-colored |
| Material |
Copper |
Environmental and real-life conditions
| Ambient conditions |
| Ambient temperature (operation) |
-60 °C … 105 °C |
| Ambient temperature (storage/transport) |
-25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) |
-5 °C … 70 °C |
| Ambient temperature (actuation) |
-5 °C … 70 °C |
| Permissible humidity (storage/transport) |
30 % … 70 % |
Mounting
| Mounting type |
Screw mounting |
