Description
Test plug strip

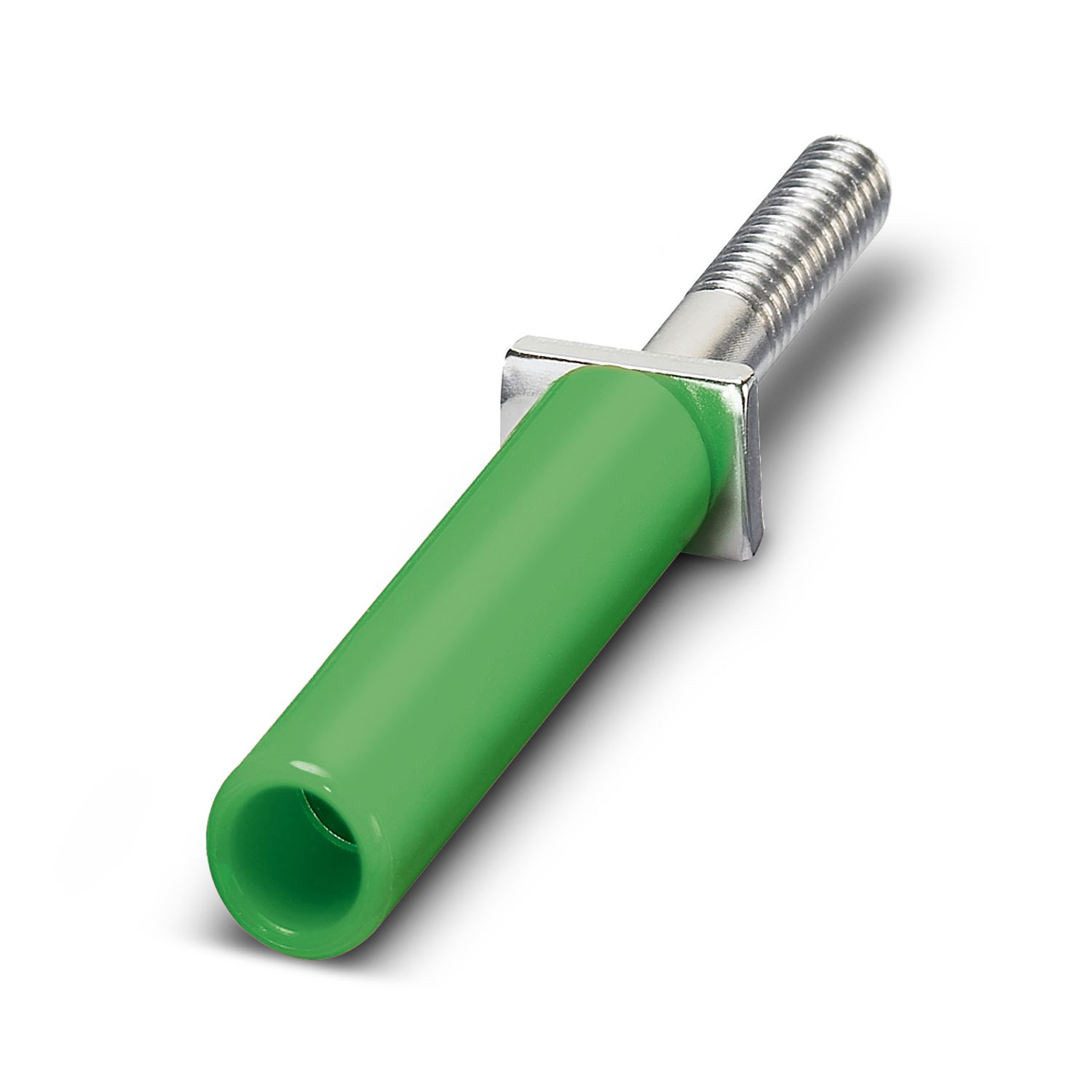

Test plug strip, number of positions: 1, color: green
Product properties
| Product type |
Test socket |
| Number of positions |
1 |
Connection data
| Connection method |
Screw connection |
Dimensions
| Width |
5 mm |
| Height |
5 mm |
| Depth on NS 35/7,5 |
15 mm |
| Pin diameter |
4 mm |
Material specifications
| Color |
green (RAL 6021) |
| Material |
Brass |
| Insulating material |
PA |
| Contact material |
Polyamide PA non-reinforced, silver-plated brass |
| Static insulating material application in cold |
-60 °C |
| Relative insulation material temperature index (Elec., UL 746 B) |
130 °C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 |
HL 1 – HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 |
HL 1 – HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 |
HL 1 – HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 |
HL 1 – HL 3 |
| Calorimetric heat release NFPA 130 (ASTM E 1354) |
27,5 MJ/kg |
| Surface flammability NFPA 130 (ASTM E 162) |
passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) |
passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) |
passed |
Environmental and real-life conditions
| Ambient conditions |
| Ambient temperature (operation) |
-60 °C … 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) |
-25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) |
-5 °C … 70 °C |
| Ambient temperature (actuation) |
-5 °C … 70 °C |
| Permissible humidity (storage/transport) |
30 % … 70 % |
