Description
Insertion bridge

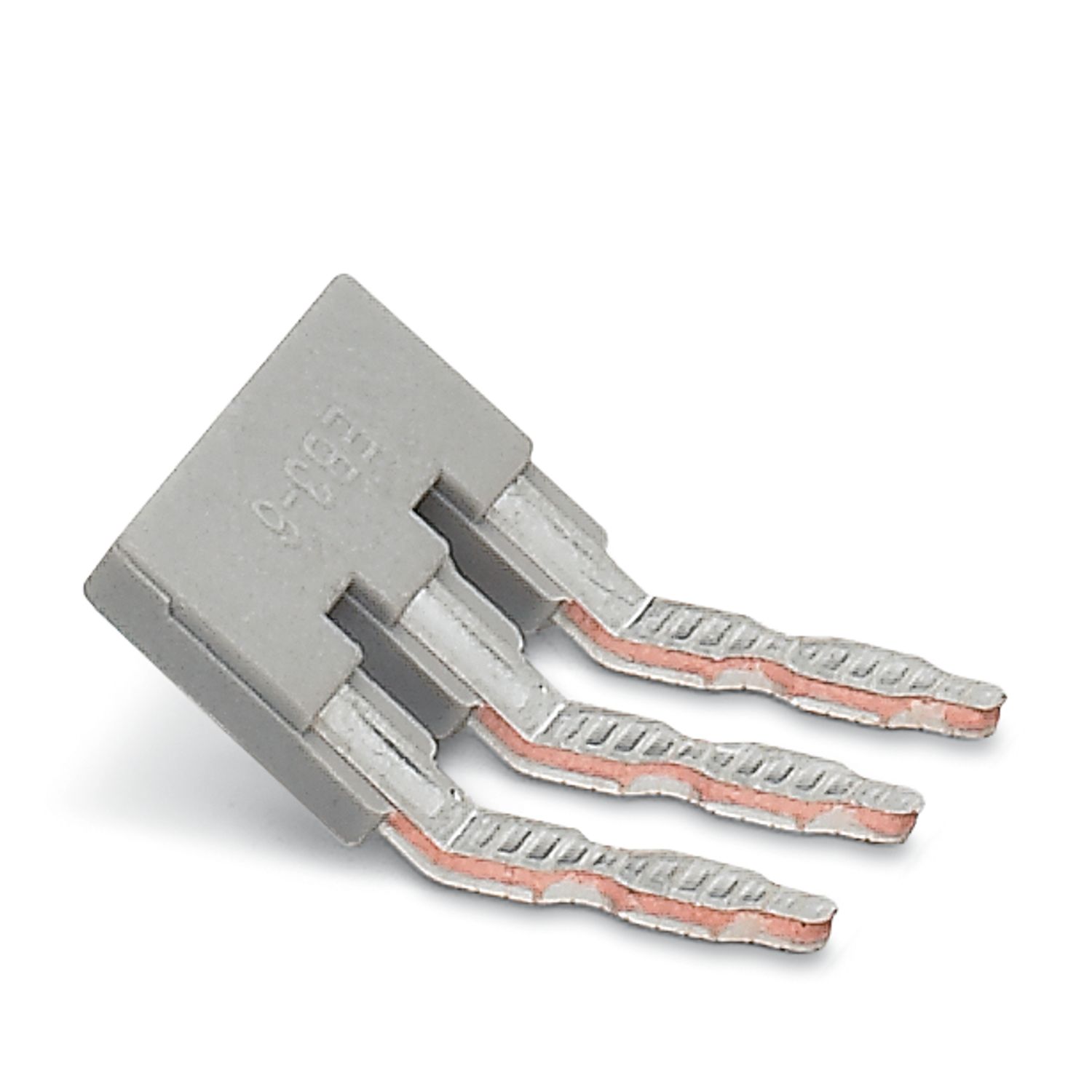

Insertion bridge, pitch: 6.2 mm, number of positions: 3, color: gray
Product properties
| Product type |
Insertion bridge |
| Number of positions |
3 |
| Pitch |
6.2 mm |
Dimensions
Material specifications
| Color |
gray (RAL 7042) |
| Material |
CuZn (nickel-plated) |
| Insulating material |
PA |
Environmental and real-life conditions
| Ambient conditions |
| Ambient temperature (operation) |
-60 °C … 105 °C |
| Ambient temperature (storage/transport) |
-25 °C … 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) |
-5 °C … 70 °C |
| Ambient temperature (actuation) |
-5 °C … 70 °C |
| Permissible humidity (storage/transport) |
30 % … 70 % |
Mounting
| Mounting type |
Screw mounting |
